Telescopic Scissor Lift Maintenance Platform

Telescopic Scissor Lift Maintenance Platform

Telescopic Scissor Lift Maintenance Platform is a unique telescopic scissor design. This self-propelled scissor lift offers high capacity, a large working platform and unmatched stability at full elevation. The unit can drive at full elevation.

Platform Data (Average):

• Travel Speed (Variable & Controllable)


• High Speed – 2.4 mph (3.9 km/hr)


• Elevated – 0.68 mph (1.13km/hr)


• Gradeability – 10%


• Telescoping Scissor Design Provides Maximum Stability at Full Elevation


• Maximum Platform Height – 32’ (9.75m)


• Minimum Platform Height – 4’5” (1.34m)


• Platform Lift Speed – 0.42 ft/sec (0.13 m/sec)


• Platform Lower Speed – 0.63 ft/sec (0.19 m/sec)


• Main Platform Capacity 3,000 lbs (1,360.8 kg)


• Extenda-deck Capacity 1,000 lbs (453.6 kg)

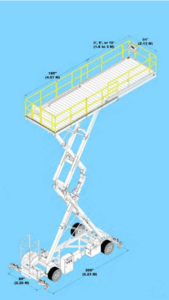

Telescopic Scissor Lift Maintenance Platform Specifications:

Maximum platform height:	32′ 9.75m
Minimum platform height:	53″ 134 cm
Capacity:	3,000 lbs. 1360 kg.
Unit weight:	17,800 lbs. 8073 kg.
Overall shut height:	7’11″ 2.41m
Platform size:	84″ x 180″ 213 cm x 457 cm
Overall length:	17’2″ 5.23m
Overall width:	7’5″ 2.26m

Options:

• 6’, 8, or 10’ (1.83, 2.44, or 3.05m) Power Deck


• Extension (Extenda-Deck)


• All Motion Alarm


• Flashing or Rotating Light


• 36VDC Power


• Gasoline Engine


• Diesel Engine


• Split “V” Deck Design


• Padded Rails


• Adjustable Work Lights


• Extreme Cold Weather Package


• Contact LIFT-A-LOFT for Custom Designs


• Pressure sensitive trip Bumpers

Safety:

• Brakes Spring Applied, Pressure Released


• Deadman Controls


• Anti-slip Work Surface


• Holding Valves on Lift Cylinders


• Emergency Stop Switch (all control stations)


• Lanyard Attachments


• Aircraft Bumpers


• Ceestrered Stabilizers

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377
