Toyota 39.4 Foot Telescopic Wheeled Boom Lift SP400C

All Toyota 39.4 Foot Telescopic Wheeled Boom Lift SP400C are equipped with a harsh environment package featuring wipers on the boom sections, boots on the cylinders, and protection on pivots and bearing points.

• The unique three-stage boom structure, standard on all wheeled boom lifts, allows for the most compact stowed position in the industry.


•  IML’s SP-Series wheeled boom lifts offer a wide working range, excellent maneuverability and smooth operation.


• As the products also are able to be in a low, compact stowed position, operators in smaller sites or with height restrictions also receive the same maneuvering capabilities.


•  The shorter showed length also makes parking simple and can reduce transportation costs as both a boom lift and a scissor lift can fit on a standard trailer.


• The wheeled boom lifts include a pull-out hosing and cartridge system for easy maintenance of boom hoses and cables.


• The articulating jib boom models provide nearly 6 feet of extra horizontal or vertical reach and a 130 degrees working range for increased flexibility.


• Available models feature a boom height of 39’4” and a 45’7” jib-equipped model. All feature a durable Yanmar engine and 8’ or optional 6’ long baskets with 500lb.-550lbs. capacities.

Toyota 39.4 Foot Telescopic Wheeled Boom Lift SP400C Performance:

• Proportional control system provides smooth and precise positioning of the unit and basket in the most critical of areas.


• The 8-foot long basket is self leveling through its full range of motion and rotates a full 180-degrees for maximized maneuverability without repositioning the boom.


• An extra large 32-gallon fuel tank is featured on all IML boom models to provide more productivity throughout the work day.


• The high ground clearance and exceptional gradeability allows the IML boom lift models to go where no other boom lift will.


• 3-speed drive system with high speed, torque and turtle modes allows exceptional performance on any surface.


• IML boom lifts are designed with a unique 3-stage telescopic reach mechanism which maximizes horizontal outreach and boom stowed position, providing a wide working range. The compact size provides exceptional maneuverability and effective transportability

 Toyota 39.4 Foot Telescopic Wheeled Boom Lift SP400C Serviceability:

• Hydraulic hoses and electrical cables are fully protected within IML’s exclusive BoomCartridge System, which provides unmatched serviceability access.

  Toyota 39.4 Foot Telescopic Wheeled Boom Lift SP400C Durability:

• A harsh environment package featuring wipers on the boom sections, boots on the cylinders and protection on pivots and bearing points is standard on all IML boom lifts.


• One-piece steel crawler drive chassis allows for an extremely rugged and stable drive platform designed for the harsh environments the SR-Series will encounter.


• The internal hosing cartridge is fully protected from external impacts and damage caused by adverse weather conditions.


• Large hoods with heavy-duty locking hatches provide significant protection to the engine, plumbing and electrical system. The hoods open fully to maximize serviceability access.


• The oversized turntable and worm drive gear system allow a very fine degree of control, while limiting play in the mechanism and decreasing wear on the system.


• Durable covers protect all hosing from potential impact damage by keeping exposure to a minimum.


• Steel tracks handle most terrain with confidence.Adding the rubber track pad option allows the unit to travel on paved surfaces with minimum damage.

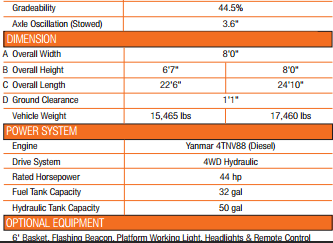

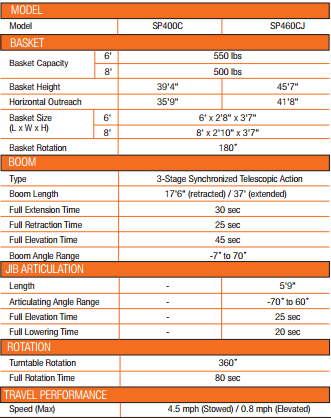

Toyota 39.4 Foot Telescopic Wheeled Boom Lift SP400C Specifications:

Industrial Manlifts is YOUR total aerial access solution provider. We can customize any aerial access solution for any project. Operators standing by, (888) 730-8377.
