Custom Maintenance Platforms

Maintenance platforms play an important role in the industry by helping the workers to make their life easy. Different types of maintenance platforms are available in the present world and industrial workers can select the ideal platform after considering their requirements. These maintenance platforms are available in standard sizes and they will not be able to help all the workers in an effective way. Therefore Custom Maintenance Platforms have come to the present world and workers can use them to reach every corner of their industrial work.  You can contact a Custom Maintenance Platform manufacturer in order to get your customized platform. A wide range of maintenance platforms can be seen in the present world and you have the ability to customize most of them.

Helicopter maintenance platforms are custom maintenance platforms that will assist you to access the maintenance areas of an aircraft. Therefore they are very popular in the aircraft maintenance industry.  The aircraft maintenance workers will have to work with different types of planes and helicopters. Therefore they will not be able to find the ideal maintenance platform for a particular situation. Custom maintenance platforms will assist them with that and it can be considered as the main reason behind their popularity. They come in different configurations and options that will allow the workers to fulfill their specific needs with less hassle.

If you need to use a lightweight maintenance platform for a particular situation, you can go for an aluminum construction. They are often mini-finished but can be powder coated to enhance the durability. Steel maintenance platforms usually comes with a powder coated design, but they can be galvanized to enhance the resistance to different elements. The custom helicopter work stand manufacturers offer many powder coat colors at no extra charge. Both aluminum platforms and steel platforms can be all welded or deployable. Deployable stands usually cost more, but some of the extra cost will be recouped in lower freight prices.

Most helicopter maintenance stands are a fixed height and have fixed platforms dimensions.  Some stands have 2 or more platforms allowing access to different maintenance areas of the aircraft.  Adjustable height stands are also available.  Stands can have extendable platform units allowing the stand to adjust to the outline of the aircraft.  This feature reduces the risk of a maintenance worker, tools and supplies falling from the platform. Bell helicopter maintenance platforms, Sikorsky maintenance platforms and Eurocopter maintenance platforms are some popular custom maintenance platforms available in the present industry. Many people tend to purchase them without any hesitation in order to make their work easy. You can contact the aircraft maintenance platform provider and get your customized platform within a short period of time.

Custom Maintenance Platforms

Eurocopter EC145 Maintenance Stand

Designed for use on the UH-72 Lakota, Bell 407, Bell 212, EC145, R44, and similar-sized aircraft, the EC145 maintenance stand is a free-standing module for use during routine daily maintenance of your aircraft. With greater height adjustability than other UMS stands, this platform is ideal for facilities desiring versatility and flexibility. The EC145 Maintenance Stand promotes process efficiency by drastically improving upper-level access for your maintainers and technicians. It minimizes your maintenance footprint while providing OSHA-compliant fall protection.

The EC145 Helicopter Maintenance Stand is adjustable from 56” to 80” in height in order to provide easy and effective access to all areas necessary for daily routine maintenance. This stand fits to both sides of the aircraft, replacing the need for two separate platforms. The EC145 Maintenance Stand is compliant with OSHA 1910.23 and has been tested to a 4x safety factor.

• Designed for daily maintenance of the UH-72 Lakota, EC145, UH-1N Twin Huey, Bell 212 Twin Huey, Bell 407, Robinson R44, BK117, and similar helicopters


• Rotating Inboard Stabilizer reaches over aircraft skid and provides extra stabilization


• Telescopic Deck Legs provide unmatched stability and durability


• Adjustable handrails offer flexibility in stand placement, whether underneath the rotor blades or at the tail, while providing continual fall protection


• Adjustable ladder extends so that, regardless of platform height, the legs remain secure on the ground


• No need for a left and right stand; the EC145 Maintenance Stand works on both


• Deployable model also available

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

Eurocopter EC145 Maintenance Stand

CH148 Cyclone Maintenance Stand

The CH148 Cyclone Helicopter Maintenance Stand positions in seconds and can be configured to fit your unique floor and space requirements.  Ideal for rotor hub and tail rotor access, the CH148 Cyclone Helicopter Maintenance Stand comes standard with compressed air service, cam-locking railings, and adjustable sliders for perfect contour conformity. Stands include electric supply if requested.

• Decks are furnished with adjustable sliders for perfect contour conformity


• Linkage bars allow you to connect two or more stands together with ease


• Quick-Latch system provides for instantaneous coupling of stairs with deck


• Railings attach with cam-locks for quick, tool-free removal and attachment with stability that surpasses post-and-pocket designs


• Extruded decking and stair tread offer  sure-footed traction that is easy on skin and clothing


• Telescopic deck legs provide unmatched stability and durability, while manual screw actuators offer 24” (61 cm) height adjustability


• Use multiple stands together for complete phase maintenance

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

CH148 Cyclone Maintenance Stand

B1 Maintenance Stand NSN 1730-00-390-5618

The B1 Maintenance Stand, NSN 1730-00-390-5618 is truly a practical and economic solution for high and overhead maintenance or production jobs that are 6 to 18 feet above the floor. It’s also used as temporary access stairways for aircraft and construction work. The 15F1900 48” x 48” standard work platform can be positioned to any height in its range by means of its selfcontained hydraulic system.

B1 Maintenance Stand Specifications:

• Adjustable to any height within its 3′ to 12′ platform floor range


• 500 lb capacity


• Heavy-duty casters and 16” dia. Pneumatic


• tires make it easy to move from job-to-job


• Stair and platform railings can be lifted out and stored on the base


• Base, stairs, and platform stay parallel at any height position


• All-steel, welded construction

Options:

• 4 x 6 platform with sliding handrails


• Large Caster Package


• Solid Tires

B1 Maintenance Stand Compatible with:

• RJ85


• RJ100


• F100


• MD-80


• B737


• DC9


• B727


• A318


• A319


• A320


• A321


• Boeing P-8A Poseidon


• P-3 Orion


• C-40A

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

B1 Maintenance Stand NSN 1730-00-390-5618

B2 MAINTENANCE STAND NSN 1730-00-390-5620

The B-2 maintenance platform and work access stand is an updated, improved version of the long-time standard B-2 maintenance stand used by the Air Force. This B-2 maintenance platform boasts a 4′x9′ work platform and can adjust in height from 10′-19′ to work on multiple airframes.

 B-2 maintenance platform Specifications:

Platform Height	10 (3.0) to 19 (5.8) ft (m)
Working Range	13 (3.9) to 25 (7.6) ft (m)
Raised Height Clearance	22.4 (6.8) ft (m)
Platform Size	4 (1.2) x 9 (2.7) ft (m)
Base Dimensions	7.8 (2.4) x 27 (8.2) (collapsed) ft (m)
Weight	3,330 (1,514) lb (kg)



Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

B2 MAINTENANCE STAND NSN 1730-00-390-5620

B5 Maintenance Stand NSN 1730-00-294-8884

Our B-5 maintenance stands are simply the best maintenance stands available. Each stand is lightweight, exceptionally strong and well-designed.



B-5 maintenance stand specifications:

• Platform height: 88″ – 135″


• 3′ x 7′ platform area


• 750 lbs. load capacity


• Heavy-duty corrosion-proof aluminum construction


• Powder-coated steel scissors lift


• Easy to operate, high-capacity manual hydraulic foot pump


• Locking casters


• Removable hand rails with onboard storage racks and safety chain


• 8” locking swivel casters with independent brake


• Integrated towbar


• Aluminum platform and railing


• Non-skid deck platform


• Platform locking pins for additional safety


• Telescoping ladder to allow access at any height


• Extra-wide, stable base


• Compact shipping footprint for low cost transport


• Optional locking pneumatic swivel casters with independent brakes


• Optional air kit


• NSN: 1730-00-294-8884


• Shipping Dimensions: 102″ L x 76″ W x 122″ H


• Weight: 1,450 lbs.

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

B5 Maintenance Stand NSN 1730-00-294-8884

B7 Maintenance Platform NSN 1730-01-009-0446

The B-7 maintenance platform has a 4′ x 7′ work platform that can be positioned to any height in its range by means of its self-contained hydraulic system.

B-7 maintenance platform Other features are:

• Platform Height: 7′ to 15′


• Non-slip, self-cleaning steps and platform floor.


• 500 pound capacity.


• Heavy-duty casters and 16″ pneumatic tires make it easy to move


• Stair and platform railings can be lifted-out and stored on the base.


• Inclining stairway


• Base, stairs and platform stay parallel at any height position.


• All-steel, welded construction.B-7 maintenance platform Options:


• Quick-detached towbar and detent pin.


• 4.00 x 8 solid rubber-compound tires.


• 4.00 x 8 foam filled tires.


• Special paint and colors.

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

B7 Maintenance Platform NSN 1730-01-009-0446

Gulfstream Engine Stands

Gulfstream Engine Stand Suitable for G350 TO G650

Gulfstream Engine stands have been designed to allow personnel easy access between engines and tail dock.  Personnel would be further protected by use of Fall Protection Equipment.

These engine stands have been designed to work in conjunction with our tail docks, but can be utilized entirely on their own as they are free standing.  They allow easy access to all areas of the engines and provide complete safety for the maintenance personnel.  They are portable and easy to move and save time by eliminating the constant need to reposition smaller pieces of ground support equipment.  Further customization can be incorporated at customer request.

Gulfstream Engine Stands Features:

• Portable platforms used to roll up against aircraft engine pods on either side


• Allows personnel to access aircraft engine at a safe working height


• Connects with Tail Dock Station for easy walk-through at second level


• Additional staiways from ground to access platform


• 42″ guardrails with mid-rails and 4″ kick plates


• Platform is 8′ high x 27′ long


• 5’11″ wide at rear of engine


• 2 1/2′ wide at front of engine


• 9′ deep opening for engine pod


• 12″ poly over steel wheel casters with 90 degree swivel locks and total lock face brakes


• 2 stage powder coating consists of a prime coat and a urethane skydrol-resistant coating

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

Gulfstream Engine Stands

G450 Gulfstream Tail Dock System

This G450 Gulfstream tail dock system incorporates several, new design features that address operational problems encountered when performing routine maintenance and repairs.

The G450 Gulfstream tail dock system is manufactured in two parts, which allows it to be positioned around the tail after parking the aircraft, reducing possibilities of damage.

Features:

• Carbon steel, two level design docking station


• Left and right modular sections – adjacent to aircraft


• Both sections lock together- beam clamp system


• 50 degree stairways allowing forward face descent


• Top floor level has conforming platforms to allow for contour of vertical stabilizer


• Rubber padding at all potentail points of contact with aircraft


• 1.5″O.D. tubing handrails; 16-gauge with 4″ kickplates on all levels


• 42 inch handrails with mid-rail with dropping handrails on top level

  to allow for clearance of horizontal stabilizer


• Tow bars and 12” solid steel casters and many other Features


• 4 person per level capacity

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

G450 Gulfstream Tail Dock System

AIRBUS A310 Aircraft Boarding Staircase

The AIRBUS A310 Aircraft Boarding Staircase can be mounted on a commercial chassis (Ford F450).

The AS228 Aircraft Boarding Staircase Services:
AIRBUS: A300, A310, A319, A320,

A321, A330, & A340
BOEING: B707, B727, B737, B747,

B757, B767, B777, & MD11
McDONALD-DOUGLAS: DC8 &

DC10
LOCKHEED: L1011

AS228 Aircraft Boarding Staircase DIMENSIONS:

A. Overall Length – 25’ 6” (7.65 m)

B. Width Outriggers Retracted –

94” (2.39 m)

C. Width Outriggers Extended –

175” (4.45 m)

D. Wheel Base* – 11’ 9” (3.58 m)

E. Ground Clearance* – 6” (0.15 m)

F. Travel Height – 10’ 6” (3.20 m)

G. Upper Platform Maximum

Height – 228” (5.97 m)

H. Upper Platform Minimum Height

– 96” (2.44 m)

STAIRCASE FEATURES:

• Platform Capacity 1000 lbs (453.6 kg)


• Each Step Capacity 250 lbs (113.4 kg)


• Engine Driven Pump Provides Hydraulic Power to Stair and Stabilization Cylinders


• Emergency Lowering from Control Panel


• Hydraulic and Electrical Connections are Quick Disconnect Allowing Easy Removal of Air Stair Assembly from Chassis with Standard Tools


• Stabilizers Provide for Minimal Upper Platform Movement Even When Fully Loaded


• Weatherproof, Recessed Lighting is Provided for all Steps and Upper Platform


• Extendable Platform Handrails at Upper Platform Fully Protect Passengers While Not Interfering with Aircraft Door Operations


• Gradability* – 20º


• Non Slip Surface on Areas That Receive Foot Contact

STAIRCASE OPTIONS:

• Cold Weather Winterization Package


• Canopy Over Staircase & Platform

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

AIRBUS A310 Aircraft Boarding Staircase

Rolling Steel Work Platforms

These Rolling Steel Work Platforms / ladders meet or exceed OSHA 1910.29 & ANSI 14.7 standards

Rolling Steel Work Platforms Specifications:

• Each platform is all welded.


• 500 lb capacity


• Constructed of 1” sq. tubing


• 5″ rigid casters on back.


• Handrails are 30″ high or 42″ high.


• Handrails are Optional for 2 to 4 steps


• Platforms are constructed in 10″ height increments.


• Ships All-Welded.



Item Number	Steps	Platform H x L	Base W x D	Perf. Tread	Serrated Tread
2SWP2421	2	20″H x 21″ L	26″ x 27″	$389	$489
2SWP2428	2	20″H x 28″ L	26″ x 34″	$479	$613
2SWP2435	2	20″H x 35″ L	26″ x 41″	$521	$648
2SWP2442	2	20″H x 42″ L	26″ x 48″	$566	$737
2SWP2449	2	20″H x 49″ L	26″ x 55″	$599	$777
2SWP2456	2	20″H x 56″ L	26″ x 62″	$628	$831
2SWP3021	2	20″H x 21″ L	32″ x 27″	$453	$558
2SWP3028	2	20″H x 28″ L	32″ x 34″	$535	$662
2SWP3035	2	20″H x 35″ L	32″ x 41″	$600	$721
2SWP3042	2	20″H x 42″ L	32″ x 48″	$638	$809
2SWP3049	2	20″H x 49″ L	32″ x 55″	$699	$857
2SWP3056	2	20″H x 56″ L	32″ x 62″	$766	$955
3SWP2421	3	30″H x 21″ L	26″ x 33″	$521	$647
3SWP2428	3	30″H x 28″ L	26″ x 40″	$574	$700
3SWP2435	3	30″H x 35″ L	26″ x 47″	$601	$752
3SWP2442	3	30″H x 42″ L	26″ x 54″	$647	$809
3SWP2449	3	30″H x 49″ L	26″ x 61″	$699	$853
3SWP2456	3	30″H x 56″ L	26″ x 68″	$739	$926
3SWP3021	3	30″H x 21″ L	35″ x 33″‘	$580	$716
3SWP3028	3	30″H x 28″ L	35″ x 40″	$623	$803
3SWP3035	3	30″H x 35″ L	35″ x 47″	$661	$853
3SWP3042	3	30″H x 42″ L	35″ x 47″	$661	$938
3SWP3049	3	30″H x 49″ L	35″ x 54″	$760	$973
3SWP3056	3	30″H x 56″ L	35″ x 61″	$830	$1054
4SWP2421	4	40″H x 21″ L	26″ x 39″	$631	$766
4SWP2428	4	40″H x 28″ L	26″ x 46″	$679	$913
4SWP2435	4	40″H x 35″ L	26″ x 53″	$733	$914
4SWP2442	4	40″H x 42″ L	26″ x 60″	$806	$999
4SWP2449	4	40″H x 49″ L	26″ x 67″	$835	$1051
4SWP2456	4	40″H x 56″ L	26″ x 74″	$875	$1117
4SWP3024	4	40″H x 21″ L	35″ x 39″	$701	$860
4SWP3028	4	40″H x 28″ L	35″ x 46″	$799	$958
4SWP3035	4	40″H x 35″ L	35″ x 53″	$830	$1024
4SWP3042	4	40″H x 42″ L	35″ x 60″	$899	$1138
4SWP3049	4	40″H x 49″ L	35″ x 67″	$955	$1159
4SWP3056	4	40″H x 56″ L	35″ x 74″	$1024	$1299
5SWP2421R	5	50″H x 21″ L	26″ x 45″	$847	$1043
5SWP2428R	5	50″H x 28″ L	26″ x 52″	$874	$1100
5SWP2435R	5	50″H x 35″ L	26″ x 59″	$913	$1141
5SWP2442R	5	50″H x 42″ L	26″ x 66″	$953	$1259
5SWP2449R	5	50″H x 49″ L	26″ x 73″	$1079	$1299
5SWP2456R	5	50″H x 56″ L	26″ x 80″	$1120	$1399
5SWP3021R	5	50″H x 24″ L	35″ x 45″	$913	$1127
5SWP3028R	5	50″H x 28″ L	35″ x 52″	$968	$1199
5SWP3035R	5	50″H x 35″ L	35″ x 59″	$1031	$1273
5SWP3042R	5	50″H x 42″ L	35″ x 66″	$1147	$1401
5SWP3049R	5	50″H x 49″ L	35″ x 73″	$1238	$1473
5SWP3056R	5	50″H x 56″ L	35″ x 80″	$1299	$1599



Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

Rolling Steel Work Platforms

Global 5000 Engine Stand

Our Bombardier Global 5000 / Global Jet Engine Stand is made with vertical tubing that is one of the industries strongest aluminum. It is 6063-T832 which is a drawn port hole extrusion and has a tensile strength of 42,000 PSI. This is what makes our scaffold stronger than any comparable aluminum scaffold.

The Global 5000 Engine Stand is compatible with the following aircrafts:

• Global 5000


• Global Express XRS


• E-11A


• Raytheon Sentinel

Our rungs, braces, platforms and outriggers are made from 6005-T5 which has a tensile strength of nearly 38,000 PSI. Our adjustable legs are made from 6061-T6511 that has a tensile strength of 45000 PSI.

Finally all of our castings are made from A356-T6 that has a tensile strength of nearly 34,000 PSI. The Global 5000 engine stands are fully customizable, call, (888) 730-8377

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377



Global 5000 Engine Stand

CH47 CH54 Helicopter Maintenance Platform

Industrial Man Lift’s CH47 / CH54 helicopter maintenance/service platform was developed from the most proven design in scissor mechanisms, engine driven hydraulic systems, and safety devices. The unit is drivable and steerable at all elevations allowing easy positioning of unit and reduced setup time.

The Helicopter Maintenance Platform is designed for the maintenance of CH47 and CH54 helicopter rotors, but may be used for any overhead maintenance application.



























FEATURES & PERFORMANCE:

•
  Travel Speed – Proportional 0 – 3 mph (0 – 4.83 k/hr)


•
  Travel Speed at Elevation –Proportional 0 – 0.5 mph (0 – 0.80k/hr)


•
  Max. Tow Speed – 20 mph (32.2 k/hr) Gradability – 30%


•
  Platform Lift/Lower Speed – 0.40 ft/sec (0.12 m/sec) *Lift/Lower speed may vary according to load and atmospheric conditions.


•
  Maximum Platform Height – 14’ 6” (4.42m)


•
  Minimum Platform Height – 5’ 6” (1.68m)


•
  Maximum Working Height – 20’ 6” (6.25m)


• Travel Height – 9’ 0” (2.74m)


• Guardrail Height – 42” (1.07m)


•
  Maximum Platform Capacity – 2,250 lbs (1,020.6 kg)


•
  Capacity on Extenda-decks – 250lbs (113.4kg) on each


• Traversing Platform – 12” (0.30m)


• Four Hydraulic Stabilizers


• Removable V-Deck Section


• Extendable – Stowable Access Ladder


• Standard Paint – Gray with Yellow Rails


• Brakes – Spring Applied Pressure Release


• Perkins Diesel Engine Std (50 hp)


•
  12 Volt Electrical System - (Battery Group Size 24, 520CCA)

SAFETY FEATURES:

• Scissor Spreader


• Self Closing, Self Latching Gates


• 42” (1.07m) Guardrails with Midrail and Toe Board


• Emergency Stop Button at Each Control Station


• Emergency Lowering System


• Lanyard Attachment Points


• Non-skid Flooring on Foot Traffic Areas


• Pressure Sensitive Trip Bumpers


• Deadman Controls


• Horn

OPTIONAL EQUIPMENT:

• Flashing Warning Lights


• Motion Alarm


• Air Line to Platform


• Platform Mounted Work Lights


• Padded Rails


• Aircraft Bumpers


• Custom Paint

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377



CH47 CH54 Helicopter Maintenance Platform

APV HIGH SPEED TOW VEHICLE

The APV High Speed Tow Vehicle was designed from the ground up specifically for the airline industry. Personnel from all aspects of the industry provided valuable input during the design and development of the APV High Speed Tow Vehicle. The result is a durable vehicle that can be used for many applications. With its structural integrity, the APV High Speed Tow Vehicle will out-perform and outlast any commercially available chassis.















APV High Speed Tow Vehicle Dimensions
PERFORMANCE SPEC:

• Maximum Speed – 30 mph (48 km/h)


• Gradeability – 15%


• GVW Rating – 14,500 lbs (6,577 kg)


• Draw Bar Pull* – 5,000 lbs (1,360 kg) without payload (*Surface conditions may effect draw bar pull.)


• Outside Turning Radius – 16’ (4.8 m)

OPTIONAL EQUIPMENT:

• Full size or short, pinned, removable bed rails with tail gate.


• Hydraulic lift gate on rear.


• Air conditioning.


• Custom paint.


• Tow hooks or pintle hitch front and rear.


• Canvas doors.


• Flashing or rotating warning lights.


• Large mirrors.


• Keyed or keyless ignition.


• Cab fans.


• Back-up alarm.


• On board air compressor.


• Two or five person closed cab.


• Two person open cab.


• Call Industrial Man Lifts for custom designed vehicles.

APV High Speed Tow Vehicle FEATURES:

• Unequaled upward visibility increases safety when approaching aircraft. Windshield is nonglare, rear window is clear of obstructions.


• Chassis Controls – Standard Automotive


• Ford CSG-649 Gas Engine (107 hp) or Deutz Turbo-Diesel (83 hp)


• Transmission – Ford C-6


• Brakes – 4-Wheel Hydraulic Disc with Hydraulic Assist and Mechanical Parking Brake.


• Hydraulic Power Assist Steering


• Chassis Frame – C6 & C12 Channel


• Solid Live Axles with Progressive Springs and Heavy Duty Shock Absorbers Front and Rear.


• Component Accessibility – Modular design of engine and transmission assembly allows for quick, simple removal and replacement. A full access hood, along with three easily removable panels allow for complete component accessibility. The APV also features a folddown dash and compartments for the battery, fuse box, hydraulic tank, and master cylinder.


• Doors – Heavy duty steel hinged doors with wind protection and replaceable windows.


• Gauges – The APV has a full array of waterproof, anti-fog gauges.


• Fuel Tank – 25 Gal. (94.6 l)


• Head/Tail Lights – Recessed to Prevent Damage


• Paint – The APV is covered with two coats of Skydrol resistant paint of the customer’s choice. One color per customer specification. (Custom paint by special order.)


• Extreme Cold Weather Packages are Available. Heater – 10,000 BTU heater is standard. (Air conditioning is optional.)


• Shear Point frame – This unique design prevents serious damage to the frame by offering break-away points that will sheer on impact.

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

APV HIGH SPEED TOW VEHICLE

Truck Mounted Scissor Lift

The Truck Mounted Scissor Lift provides working heights of up to 38′ (11.58m) with platform capacities of up to 4,000lbs. (1,814kg). The telescopic scissors assembly minimizes wheelbase requirements; this provides maximum maneuverability without compromising platform height.









































Truck Mounted Scissor Lift Features:

Telescopic Scissors Design – Provides increased stability at full elevation.

Skydrol Resistant Paint – Protects the lift from harsh chemical spills.

3″ Tubular Aircraft Bumpers – Adds protection when working in close proximity to aircraft.

Platform Controls – Include pedestal with stabilizer raise/lower and ignition with anti re-start. A pendent controller includes platform traverse and raise lower controls.

Emergency Back up Controls at Base – Allows the platform to be retracted and lowered or the stabilizers raised in the event of an engine failure.

Non-Slip Platform Surface – Provides good traction for worker safety.

Engine Driven Hydraulic Power Supply – Provides necessary power to operate all functions.

Hydraulic Stabilizers – Increases stability of the entire unit.

Lanyard Attachment Points – Available on platform for attaching fall protection.

Traversing Platform – Provides excellent reach and precise alignment at elevation.

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

Truck Mounted Scissor Lift

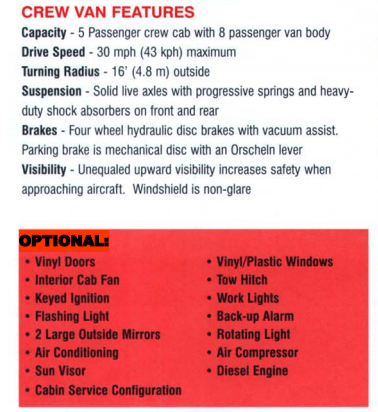

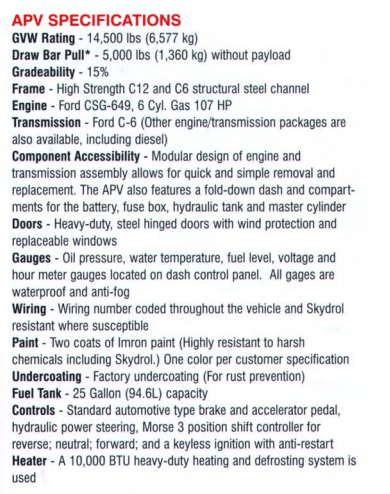

APV Crew Van

The APV Crew Van developed specifically for the airline industry with special emphasis on component accessibility and operator convenience. This unit offers a durable design, a comfortable ride, and excellent maneuverability when transporting people or equipment.

The APV Crew Van comfortably transports personnel and supplies between work stations and the aircraft. When the weather is less than favorable, personnel can utilize the rear compartment of the APV Crew Van for on-location inside repair-work.













APV Crew Van DIMENSIONS:

A. Chassis Length – 16’ (4.88m)

B. Chassis Width – 6’ 8” (2.03m)

C. Wheel Base – 7’ 10” (2.39m)

D. Travel Height – 7’ 2” (1.98m)

E. Interior Head Room – 5’ 3-1/2” (1.61m)

F. Rear Step Height – 18-1/2” (0.47m)

G. Shipping Weight – 7,975 lbs (3,617.5 kg)

















































Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

APV Crew Van

Aircraft Boarding Staircase

The Aircraft Boarding Staircase can be mounted on a commercial chassis (Ford F450).

The AS228 Aircraft Boarding Staircase Services:
AIRBUS: A300, A310, A319, A320,

A321, A330, & A340
BOEING: B707, B727, B737, B747,

B757, B767, B777, & MD11
McDONALD-DOUGLAS: DC8 &

DC10
LOCKHEED: L1011

AS228 Aircraft Boarding Staircase DIMENSIONS:

A. Overall Length – 25’ 6” (7.65 m)

B. Width Outriggers Retracted –

94” (2.39 m)

C. Width Outriggers Extended –

175” (4.45 m)

D. Wheel Base* – 11’ 9” (3.58 m)

E. Ground Clearance* – 6” (0.15 m)

F. Travel Height – 10’ 6” (3.20 m)

G. Upper Platform Maximum

Height – 228” (5.97 m)

H. Upper Platform Minimum Height

– 96” (2.44 m)

STAIRCASE FEATURES:

• Platform Capacity 1000 lbs (453.6 kg)


• Each Step Capacity 250 lbs (113.4 kg)


• Engine Driven Pump Provides Hydraulic Power to Stair and Stabilization Cylinders


• Emergency Lowering from Control Panel


• Hydraulic and Electrical Connections are Quick Disconnect Allowing Easy Removal of Air Stair Assembly from Chassis with Standard Tools


• Stabilizers Provide for Minimal Upper Platform Movement Even When Fully Loaded


• Weatherproof, Recessed Lighting is Provided for all Steps and Upper Platform


• Extendable Platform Handrails at Upper Platform Fully Protect Passengers While Not Interfering with Aircraft Door Operations


• Gradability* – 20º


• Non Slip Surface on Areas That Receive Foot Contact

STAIRCASE OPTIONS:

• Cold Weather Winterization Package


• Canopy Over Staircase & Platform

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

Aircraft Boarding Staircase

AMV36 Vertical Mast Aerial Lift

AMV36 vertical mast aerial lift units were designed to operate in narrow aisles and congested plant environments. These self propelled lift platforms offer a combination of high lift, reach, and maneuverability that make them a safe solution for tough industrial overhead maintenance applications. Mast lifts are available with electric power or pneumatic (air) power.

DRIVE, LIFT, ROTATE, AND REACH AT UP TO 30 FEET (9.1 Meters) WORKING HEIGHT

Model AMV36-20

• 36 Inches (0.91m) Wide

• Working Height to 26 Feet (7.92m)
Model AMV36-24

• 36 Inches (0.91m) Wide

• Working Height to 30 Feet (9.14m)

Performance (Average):

Travel Speed (Variable & Controllable)

• High Speed – 2.27 mph (3.65km/hr)

• High Torque – 1.14 mph (1.83km/hr)

• Elevated – 0.68 mph (1.13km/hr)

• Gradeability – 25%

• Turning Radius Inside – 51” (1.30m)

Outside – 102” (2.59m)

• Platform Lift Speed – 0.42 ft/sec (0.13 m/sec)

• Platform Lower Speed – 0.63 ft/sec (0.19 m/sec)

• Platform Rotation – 1 RPM

• Platform Capacity 500 lbs (226.8kg)

• Brakes Spring Applied, Pressure Released

Options

• 18” (0.46m) Roll Out Platform Extension

(Extenda-Deck)

• Motion Alarm

• Flashing or Rotating Light

Battery Information

• Four 6-volt Deep Cycle HD245 AHC

Batteries with Fully Automatic On-Board

Charger (110VAC Power Input)

or

• 24-Volt Industrial Battery/Industrial

Charger

• Compartment Size 32”L (0.81m) X 14”W

(0.36m) X 31”H (0.79m)

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

AMV36 Vertical Mast Aerial Lift

Gulfstream Fuselage Ladder

This Gulfstream Fuselage ladder was specifically designed for use with the Gulfstream aircraft, but can be easily modified to suit any fuselage body style.

The Gulfstream Fuselage Ladder can be manufactured to extend over a wider area and is intended to provide support and  back relief for personnel who are required to lean over or stretch as they attend to tasks in the fuselage area of the aircraft.

Features:

• Supported Cantilever ladder with upper curved portion to fit flush with fuselage


• Carbon steel with 450 lbs. capacity


• All-welded unit with Safety Yellow Powder Coating: Skydrol urethane coating


• 126″ (10 1/2 feet) platform height


• 42″ guardrails; 30″ handrails on stairway


• 36″ wide steps


• 28 1/2″ deep top platform: 33″ cantilever section from end to end


• 148″ deep x 39″ wide overall base


• Grip Strut (Serrated) treads on steps and decking


• Diamond tread on curved portion


• Right and left sections of curve cutout to accommodate arms of personnel


• Rubber bumper under curved section to prevent aircraft damage


• Two rear swivel locking casters: allows to roll parallel with aircraft


• Step-Lock device to lock first two casters in place

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377



Gulfstream Fuselage Ladder

Stainless Steel Ladders

Stainless Steel Ladders are ideal for wash down and corrosive environments.

• Built to OSHA and ANSI standards
• 350 lbs. capacity
• 1 – 3 step ladders have 10” deep top steps
• 4 – 12 step ladders have 14” deep top steps
• Option: 20” Deep Top Step available on all models – call for pricing
• NOTE: Casters and springs are not stainless steel



Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

Stainless Steel Ladders

Material Handling Equipment

Almost all the industrial occupations involve overexertion and that will lead the workers to hazards and accidents. Industrial workers have to engage in different types of work, so a wide range of handling and storing equipment have come to the world to help the workers in their work. It is essential for a person to select the right material handling equipment for a particular purpose. It will directly affect the efficiency of work and the operational cost. This article will let you know about some popular material handling equipment that is available in the present world and the uses of them.

It is essential for the industrial workers to have metal storage cabinets in their workplace. The industrial environments have heavy lifting or handling objects that are sharp like sheet metal. The metal storage cabinets will help the workers to prevent from the damages that will occur with that metal equipment. People should not leave them all around the industrial arena and it will create many damages to the other people. You should store them safely in the metal storage cabinets. You can seek the assistance of hard gloves to store them with less hassle. The metal storage cabinets are made with durable steel and they can store all the sharp objects in an effective way.

Flammable objects like gas cylinders can also be seen in the industrial environments and flammable storage cabinets will help you to store them. Even a small mistake can create a big damage with flammable equipment. The flammable storage cabinet will keep all your propane cylinders safe because of their unique design and safety measures. They have a 12 gauge steel construction and expanded metal see through sides for your convenience. Flammable storage cabinets are available in different sizes and they will assist you to store the cylinders in a convenient environment. You can use safety glasses or goggles to store these flammable cylinders in the flammable liquid storage cabinet. A splashed liquid like an acid or a corrosive liquid have the ability to cause a serious damage to your eyes. If you leave these flammable liquid containers all over the industrial workplace, you will have to take a very high risk. Therefore it is essential for you to purchase a flammable liquid storage cabinet and store them in order to get rid of the risk. The flammable liquid storage cabinets are resistant to fire and shocks.

When working with substances and chemicals that could be unstable or harmful, you need to ensure that these are not left lying around where they could be knocked over. Purchasing a chemical storage cabinet will help you to store all those chemicals in a safe environment. All these material handling equipment are made under strict regulations in order to ensure the safety of industrial workers. Therefore any person can purchase them and engage in the work with a hassle free mind.

Material Handling Equipment

Material Handling Equipment

Almost all the industrial occupations involve overexertion and that will lead the workers to hazards and accidents. Industrial workers have to engage in different types of work, so a wide range of handling and storing equipment have come to the world to help the workers in their work. It is essential for a person to select the right material handling equipment for a particular purpose. It will directly affect the efficiency of work and the operational cost. This article will let you know about some popular material handling equipment that is available in the present world and the uses of them.

It is essential for the industrial workers to have metal storage cabinets in their workplace. The industrial environments have heavy lifting or handling objects that are sharp like sheet metal. The metal storage cabinets will help the workers to prevent from the damages that will occur with that metal equipment. People should not leave them all around the industrial arena and it will create many damages to the other people. You should store them safely in the metal storage cabinets. You can seek the assistance of hard gloves to store them with less hassle. The metal storage cabinets are made with durable steel and they can store all the sharp objects in an effective way.

Flammable objects like gas cylinders can also be seen in the industrial environments and flammable storage cabinets will help you to store them. Even a small mistake can create a big damage with flammable equipment. The flammable storage cabinet will keep all your propane cylinders safe because of their unique design and safety measures. They have a 12 gauge steel construction and expanded metal see through sides for your convenience. Flammable storage cabinets are available in different sizes and they will assist you to store the cylinders in a convenient environment. You can use safety glasses or goggles to store these flammable cylinders in the flammable liquid storage cabinet. A splashed liquid like an acid or a corrosive liquid have the ability to cause a serious damage to your eyes. If you leave these flammable liquid containers all over the industrial workplace, you will have to take a very high risk. Therefore it is essential for you to purchase a flammable liquid storage cabinet and store them in order to get rid of the risk. The flammable liquid storage cabinets are resistant to fire and shocks.

When working with substances and chemicals that could be unstable or harmful, you need to ensure that these are not left lying around where they could be knocked over. Purchasing a chemical storage cabinet will help you to store all those chemicals in a safe environment. All these material handling equipment are made under strict regulations in order to ensure the safety of industrial workers. Therefore any person can purchase them and engage in the work with a hassle free mind.

Material Handling Equipment

Double Entry Platform Ladder

The double entry rolling platform ladder is our best selling mobile platform. It has two stairways and no handrail on one side. The lock safe caster locking systems turn this mobile platform ladder into an unmovable stand on all four legs. We create these stands with many sizes and heights. Our customers continue to find new uses for it.

Standard Features

• 57 degree slope is standard


• 24″ or 36″e; wide serrated steps


• “Step Lock” locking caster system on both ends


• Several top platform depths to choose from


• Removable safety chain for access


• 500 lbs load rating


• 1″ square tube construction


• 30″ handrail on one side


• Gray industrial enamel finish

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

Double Entry Platform Ladder

Mobile Maintenance Platform Ladder

The mobile maintenance platform ladder is a strong tilt and roll style ladder. The top railing of the mobile maintenance platform ladder is fortified to allow a removable safety chain for workers to climb to other areas. The mobile maintenance platform ladder was originally intended for accessing the backs of freight trucks, but our customers have found a plethora of uses.

Standard Features

• 57 degree slope is standard


• 24″ wide steps


• Tilt & Roll design on 5″ rigid casters


• 21″ deep top platform


• Removable safety chain for access


• 300 lbs load rating


• 1″ square tube construction


• 30″ handrails


• Gray industrial enamel finish

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

Mobile Maintenance Platform Ladder

Cantilever Rolling Ladder

The cantilever rolling ladder allows workers to go up and over obstacles. The cantilevered portion of the platform is perfect for clearing hard to reach areas, but while still maintaining a high level of safety and rigidity. Our customers use the cantilever rolling ladder in aviation, production, and areas with obscure machinery.

Standard Features

• 57 degree slope is standard


• 24″ wide steps


• Individually locking casters


• Overhangs hard to reach areas


• Several overhang depths to choose from (see catalog)


• Counterbalance weight at base


• 300 lbs load rating


• 1″ square tube construction


• 30″ handrails


• Gray industrial enamel finish

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

Cantilever Rolling Ladder

Bell B206L A Helicopter Maintenance Platform

Bell Helicopter Maintenance Platforms for B206L A are lightweight and movable conventional platforms for aircraft maintenance. This maintenance stand allows the technician a secure and safe area to work.

Maintenance platforms are constructed from high-strength steel with anti-slip and anti-bounce safety tread.

• Fully welded, high strength, steel construction


• Designed for easy maneuverability


• Easy Storage


• Anti-slip, anti-bounce tread


• Allows the technician a safe working platform


• Handrails for added safety


• Tool tray included


• Choice of powder coat color

Industrial Man Lifts is YOUR  aerial access solution provider. We can customize any aerial access solution for any project. Operators standing by, (888) 730-8377.

Bell B206L A Helicopter Maintenance Platform

Bell B206L B Helicopter Maintenance Platform

Bell B206L B Helicopter Maintenance Platforms for are lightweight and movable conventional stands for aircraft maintenance.

This maintenance stand allows the technician a secure and safe area to work. Helicopter Maintenance platforms are constructed from high-strength steel with anti-slip and anti-bounce safety tread.

• Height – 94″


• Width – 54″


• Length – 62″


• Deck height – 42″



Price without lift system: $5,009.00

Price with lift system: Add $909.00

• Fully welded, high strength, steel construction


• Designed for easy maneuverability


• Easy Storage


• Anti-slip, anti-bounce tread


• Allows the technician a safe working platform


• Handrails for added safety


• Tool tray included


• Choice of powder coat color

Call to order: 888-730-8377

Industrial Man Lifts is YOUR aerial access solution provider. We can customize any aerial access solution for any project. Operators standing by, (888) 730-8377.

Bell B206L B Helicopter Maintenance Platform

AW139 Helicopter Maintenance Platform

THE AW139 800 Series MAINTENANCE STAND CAN BE USED WITH THE FOLLOWING:

AIRCRAFT TYPE AIRCRAFT MODEL

AUGUSTA, AW139

____________________________________________________________________

MODEL 800 DIMENSIONS:

TOTAL COMPLETE STAND:

HEIGHT:  132”      WIDTH: 71”   LENGTH:  152”

1^ST DECK HEIGHT:  43”    LENGTH: 100”

2^ND FOLD UP DECK HEIGHT:  80”   LENGTH:  90”

3^RD TOP DECK HEIGHT:  90” LENGTH: 66”

STEP: 30” STEP WIDTH: 24”   LENGTH:  9”

2^ND STEP LADDER HEIGHT: 80” STEP WIDTH: 24”   LENGTH: 9”

WHEELS: 5 EA.  (4-8” SCAFFOLDING & 1-8” PLATE)

TOOL TRAY: 1 EA.

CHOICE OF POWDER COAT COLOR



(NOTE: WIDTH OF DECKS ARE CONTOURED TO AIRCRAFT. MEASUREMENTS VARY FROM ONE END TO THE OPPOSITE END OF DECKS)

Industrial Man Lifts. is YOUR aerial access solution. We can customize any aerial access solution for any project. Operators standing by, (888) 730-8377.

AW139 Helicopter Maintenance Platform

Rolling Stock Picking Ladder

The rolling stock picking ladder offers all of safety and efficiency of our standard rolling ladder, but has the added benefit of a shelving unit within the frame. This rolling stock picking ladder is perfect for stock rooms and areas with storage. Reduce the time it takes to move your ladder and boxes by moving them all at once.

Standard Features

• 57 degree slope is standard


• 24″ wide steps


• “Lock Safe” step lock casters


• Non-marring rubber tips at stabilizing legs


• 21″ deep top platform


• 3 shelf system (22″ x 22″) 50 lbs capacity per shelf


• 300 lbs load rating


• 1″ square tube construction


• 30″ handrails


• Gray industrial enamel finish

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

Rolling Stock Picking Ladder

Mobile Office Stand

We realized that our mobile office stands / portable work platforms had a need in the office environment. The mobile office stand has the same construction, but has a less aggressive design. Spring loaded casters and grip tape treads on our mobile office stand create a comfortable surface for office workers with dress shoes and high heels.

Standard Features

• 57 degree slope is standard


• 18″ or 24″ wide steps


• Spring-loaded automatic casters


• Non-marring rubber tips at stabilizing legs


• 14″ deep top platform


• 300 lbs load rating


• 1″ square tube construction


• 30″ handrails if equipped


• Gray industrial enamel finish

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

Mobile Office Stand

Roll a Fold Ladder

The Roll a Fold Ladder provides all the benefits of a safety rolling ladder, but with the added advantage of compact storage. By removing two bolts, the outer legs of our Roll a Fold Ladder fold inward and the ladder can be rolled on its tires. The large tires allow the unit to be rolled over rough terrain to access areas where most standard ladders cannot reach.

Standard Features

• 57 degree slope is standard


• 18″ wide steps


• Tilt & Roll design on 10″ semi-pneumatic tires


• Easy folding with two bolts


• Non-marring rubber tips at stabilizing legs


• 14″ deep top platform


• 300 lbs load rating


• 1″ square tube construction


• 30″ handrails if equipped


• Gray industrial enamel finish

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

Roll a Fold Ladder

Aluminum Rolling Ladder

The aluminum rolling ladder is the lightweight version of our safety rolling ladders. If you’re looking for an Aluminum Rolling Ladder that is light and can stand the test of time, consider these. Because of their light weight, these units have a tilt and roll design for easy portability. The grip tape treads are standard, but we can also design them with serrated treads for an even more safe surface.

Standard Features

• 57 degree slope is standard


• 18″ or 24″ wide steps


• Tilt & Roll design on 5″ rigid casters


• Non-marring rubber tips at stabilizing legs


• 14″ deep top platform


• 300 lbs load rating


• 1″ square aluminum construction


• 30″ handrails if equipped


• Cleaned mill finish

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

Aluminum Rolling Ladder

Mobile Work Platform Ladder

Our mobile work platform ladder utilizes a tilt and roll design for quick and easy placement to the areas you need them. The mobile work platform ladder provides a safe and stable elevated working surface for those hard to reach operations.

Standard Features

• 57 degree slope is standard


• 24″, or 30″ wide steps


• Tilt & Roll design on 5″ rigid casters


• Non-marring rubber tips at stabilizing legs


• Platform depths from 21″ to 56″


• 500 lbs load rating


• 1″ square tube construction


• 30″ handrails if equipped


• Gray industrial enamel finish

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

Mobile Work Platform Ladder

Rolling Steel Safety Ladder

Our Steel Rolling Safety Ladder provides a mobile solution to access vertical heights. These rolling safety ladders are made of rugged 1 inch square tube design. They come standard with a weight activated “Lock Step”. The handle on the side is designed to release the lock with ease.

Standard Features

• 57 degree slope is standard


• 30″, 24″, or 18″ wide steps


• 5 steps and higher utilize the Lock Step


• 4 steps and shorter are Spring Loaded


• Rubber tips at stabilizing legs


• 14″ deep top platform


• 300 lbs load rating


• 1″ square tube construction


• 30″ handrails if equipped


• Gray industrial enamel finish

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377

Rolling Steel Safety Ladder

Test Post from Industrial Man Lifts|Maintenance Platforms|Ladders

Test Post from Industrial Man Lifts|Maintenance Platforms|Ladders http://www.industrialmanlifts.com
